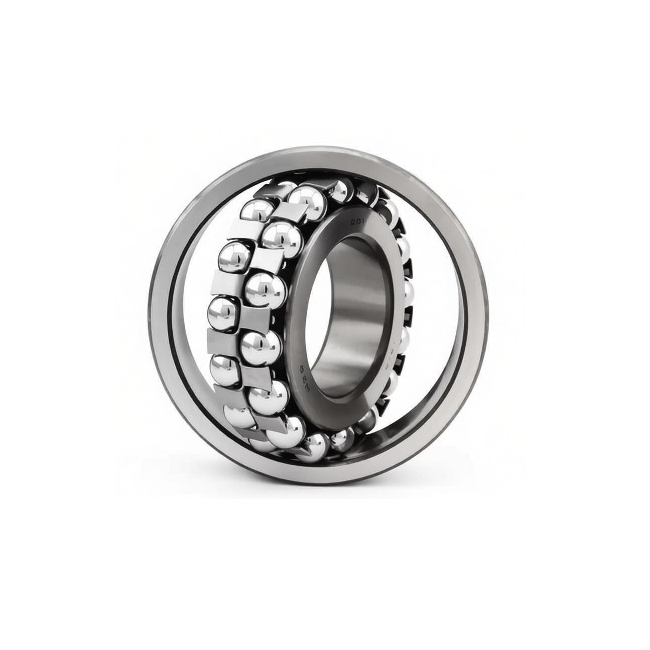

Sphercial Ball Bearing
Sphercial Ball Bearing
Sphercial Ball Bearing
- Detail
- Parameters
| Self- aligning Ball Bearings -12 K Series | |||||||||
| Bearing Number | Boundary dimensions(mm) | Basic load ratings(kN) | Limiting speeds(rpm) | Mass(Kg) | |||||
| d | D | B | rs min | Cr | Cor | Grease | Oil | (Approx.) | |
| 1200 | 10 | 30 | 9 | 0.6 | 5.5 | 1.19 | 21,000 | 24,000 | 0.033 |
| 1201 | 12 | 32 | 10 | 0.6 | 5.6 | 1.27 | 18,000 | 22,000 | 0.04 |
| 1202 | 15 | 35 | 11 | 0.6 | 7.45 | 1.75 | 16,000 | 19,000 | 0.049 |
| 1203 | 17 | 40 | 12 | 0.6 | 7.9 | 2.01 | 14,000 | 17,000 | 0.072 |
| 1204 | 20 | 47 | 14 | 1 | 9.9 | 2.61 | 13,000 | 15,000 | 0.116 |
| 1204K | 20 | 47 | 14 | 1 | 9.9 | 2.61 | 13,000 | 15,000 | 0.114 |
| 1205 | 25 | 52 | 15 | 1 | 12.1 | 3.3 | 11,000 | 13,000 | 0.138 |
| 1205K | 25 | 52 | 15 | 1 | 12.1 | 3.3 | 11,000 | 13,000 | 0.135 |
| 1206 | 30 | 62 | 16 | 1 | 15.6 | 4.65 | 9,200 | 11,000 | 0.217 |
| 1206K | 30 | 62 | 16 | 1 | 15.6 | 4.65 | 9,200 | 11,000 | 0.213 |
| 1207 | 35 | 72 | 17 | 1.1 | 15.8 | 5.1 | 8,000 | 9,400 | 0.317 |
| 1207K | 35 | 72 | 17 | 1.1 | 15.8 | 5.1 | 8,000 | 9,400 | 0.312 |
| 1208 | 40 | 80 | 18 | 1.1 | 19.3 | 6.55 | 7,100 | 8,400 | 0.414 |
| 1208K | 40 | 80 | 18 | 1.1 | 19.3 | 6.55 | 7,100 | 8,400 | 0.407 |
| 1209 | 45 | 85 | 19 | 1.1 | 21.9 | 7.35 | 6,400 | 7,500 | 0.457 |
| 1209K | 45 | 85 | 19 | 1.1 | 21.9 | 7.35 | 6,400 | 7,500 | 0.448 |
| 1210 | 50 | 90 | 20 | 1.1 | 22.7 | 8.1 | 5,800 | 6,800 | 0.515 |
| 1210K | 50 | 90 | 20 | 1.1 | 22.7 | 8.1 | 5,800 | 6,800 | 0.504 |
| 1211 | 55 | 100 | 21 | 1.5 | 26.8 | 10 | 5,300 | 6,200 | 0.692 |
| 1211K | 55 | 100 | 21 | 1.5 | 26.8 | 10 | 5,300 | 6,200 | 0.679 |
| 1212 | 60 | 110 | 22 | 1.5 | 30 | 11.5 | 4,900 | 5,800 | 0.879 |
| 1212K | 60 | 110 | 22 | 1.5 | 30 | 11.5 | 4,900 | 5,800 | 0.864 |
| 1213 | 65 | 120 | 23 | 1.5 | 31 | 12.5 | 4,500 | 5,300 | 1.13 |
| 1213K | 65 | 120 | 23 | 1.5 | 31 | 12.5 | 4,500 | 5,300 | 1.11 |
| 1214 | 70 | 125 | 24 | 1.5 | 34.5 | 13.8 | 4,200 | 4,900 | 1.24 |
| 1215 | 75 | 130 | 25 | 1.5 | 39 | 15.7 | 3,900 | 4,600 | 1.33 |
| 1215K | 75 | 130 | 25 | 1.5 | 39 | 15.7 | 3,900 | 4,600 | 1.31 |
| 1216 | 80 | 140 | 26 | 2 | 40 | 17 | 3,700 | 4,300 | 1.65 |
| 1216K | 80 | 140 | 26 | 2 | 40 | 17 | 3,700 | 4,300 | 1.62 |
| 1217 | 85 | 150 | 28 | 2 | 49 | 20.8 | 3,500 | 4,100 | 2.06 |
| 1217K | 85 | 150 | 28 | 2 | 49 | 20.8 | 3,500 | 4,100 | 2.03 |
| 1218 | 90 | 160 | 30 | 2 | 57 | 23.5 | 3,300 | 3,800 | 2.51 |
| 1218K | 90 | 160 | 30 | 2 | 57 | 23.5 | 3,300 | 3,800 | 2.47 |
| 1219 | 95 | 170 | 32 | 2.1 | 64 | 27.1 | 3,100 | 3,600 | 3.1 |
| 1219K | 95 | 170 | 32 | 2.1 | 64 | 27.1 | 3,100 | 3,600 | 3.05 |
| 1220 | 100 | 180 | 34 | 2.1 | 69 | 29.7 | 2,900 | 3,400 | 3.7 |
| 1220K | 100 | 180 | 34 | 2.1 | 69 | 29.7 | 2,900 | 3,400 | 3.64 |
| 1221 | 105 | 190 | 36 | 2.1 | 74.5 | 32.5 | 2,800 | 3,300 | 4.34 |
| 1222 | 110 | 200 | 38 | 2.1 | 80.5 | 35.5 | 2,600 | 3,100 | 5.15 |
| 1222K | 110 | 200 | 38 | 2.1 | 80.5 | 35.5 | 2,600 | 3,100 | 5.07 |
| Self- aligning Ball Bearings -22 K Series | |||||||||
| Bearing Number | Boundary dimensions(mm) | Basic load ratings(kN) | Limiting speeds(rpm) | Mass(Kg) | |||||
| d | D | B | rs min | Cr | Cor | Grease | Oil | (Approx.) | |
| 2200 | 10 | 30 | 14 | 0.6 | 7.3 | 1.59 | 19,000 | 23,000 | 0.047 |
| 2201 | 12 | 32 | 14 | 0.6 | 7.6 | 1.73 | 17,000 | 20,000 | 0.051 |
| 2202 | 15 | 35 | 14 | 0.6 | 7.7 | 1.85 | 15,000 | 18,000 | 0.06 |
| 2203 | 17 | 40 | 16 | 0.6 | 9.8 | 2.41 | 13,000 | 16,000 | 0.088 |
| 2204 | 20 | 47 | 18 | 1 | 12.6 | 3.3 | 12,000 | 14,000 | 0.14 |
| 2204K | 20 | 47 | 18 | 1 | 12.6 | 3.3 | 12,000 | 14,000 | 0.137 |
| 2205 | 25 | 52 | 18 | 1 | 12.3 | 3.45 | 10,000 | 12,000 | 0.157 |
| 2205K | 25 | 52 | 18 | 1 | 12.3 | 3.45 | 10,000 | 12,000 | 0.153 |
| 2206 | 30 | 62 | 20 | 1 | 15.2 | 4.5 | 8,600 | 10,000 | 0.256 |
| 2206K | 30 | 62 | 20 | 1 | 15.2 | 4.5 | 8,600 | 10,000 | 0.25 |
| 2207 | 35 | 72 | 23 | 1.1 | 21.5 | 6.6 | 7,500 | 8,800 | 0.392 |
| 2207K | 35 | 72 | 23 | 1.1 | 21.5 | 6.6 | 7,500 | 8,800 | 0.382 |
| 2208 | 40 | 80 | 23 | 1.1 | 22.3 | 7.35 | 6,700 | 7,900 | 0.493 |
| 2208K | 40 | 80 | 23 | 1.1 | 22.3 | 7.35 | 6,700 | 7,900 | 0.482 |
| 2209 | 45 | 85 | 23 | 1.1 | 23.2 | 8.15 | 6,000 | 7,100 | 0.54 |
| 2209K | 45 | 85 | 23 | 1.1 | 23.2 | 8.15 | 6,000 | 7,100 | 0.528 |
| 2210 | 50 | 90 | 23 | 1.1 | 23.2 | 8.45 | 5,500 | 6,400 | 0.583 |
| 2210K | 50 | 90 | 23 | 1.1 | 23.2 | 8.45 | 5,500 | 6,400 | 0.569 |
| 2211 | 55 | 100 | 25 | 1.5 | 26.5 | 9.9 | 5,000 | 5,800 | 0.787 |
| 2211K | 55 | 100 | 25 | 1.5 | 26.5 | 9.9 | 5,000 | 5,800 | 0.769 |
| 2212 | 60 | 110 | 28 | 1.5 | 34 | 12.6 | 4,600 | 5,400 | 1.08 |
| 2212K | 60 | 110 | 28 | 1.5 | 34 | 12.6 | 4,600 | 5,400 | 1.06 |
| 2213 | 65 | 120 | 31 | 1.5 | 43.5 | 16.4 | 4,200 | 5,000 | 1.44 |
| 2213K | 65 | 120 | 31 | 1.5 | 43.5 | 16.4 | 4,200 | 5,000 | 1.41 |
| 2214 | 70 | 125 | 31 | 1.5 | 44 | 17.1 | 3,900 | 4,600 | 1.52 |
| 2215 | 75 | 130 | 31 | 1.5 | 44.5 | 17.8 | 3,700 | 4,300 | 1.58 |
| 2215K | 75 | 130 | 31 | 1.5 | 44.5 | 17.8 | 3,700 | 4,300 | 1.54 |
| 2216 | 80 | 140 | 33 | 2 | 48.5 | 19.9 | 3,400 | 4,000 | 1.99 |
| 2216K | 80 | 140 | 33 | 2 | 48.5 | 19.9 | 3,400 | 4,000 | 1.95 |
| 2217 | 85 | 150 | 36 | 2 | 58 | 23.6 | 3,200 | 3,800 | 2.54 |
| 2217K | 85 | 150 | 36 | 2 | 58 | 23.6 | 3,200 | 3,800 | 2.49 |
| 2218 | 90 | 160 | 40 | 2 | 70 | 28.7 | 3,100 | 3,600 | 3.19 |
| 2218K | 90 | 160 | 40 | 2 | 70 | 28.7 | 3,100 | 3,600 | 3.12 |
| 2219 | 95 | 170 | 43 | 2.1 | 83.5 | 34.5 | 2,900 | 3,400 | 3.89 |
| 2219K | 95 | 170 | 43 | 2.1 | 83.5 | 34.5 | 2,900 | 3,400 | 3.8 |
| 2220 | 100 | 180 | 46 | 2.1 | 94 | 38.5 | 2,700 | 3,200 | 4.65 |
| 2220K | 100 | 180 | 46 | 2.1 | 94 | 38.5 | 2,700 | 3,200 | 4.54 |
| 2221 | 105 | 190 | 50 | 2.1 | 109 | 45 | 2,600 | 3,100 | 6.07 |
| 2222 | 110 | 200 | 53 | 2.1 | 124 | 51.5 | 2,500 | 2,900 | 7.1 |
| 2222K | 110 | 200 | 53 | 2.1 | 124 | 51.5 | 2,500 | 2,900 | 6.94 |
| Self- aligning Ball Bearings -13 K Series | |||||||||
| Bearing Number | Boundary dimensions(mm) | Basic load ratings(kN) | Limiting speeds(rpm) | Mass(Kg) | |||||
| d | D | B | rs min | Cr | Cor | Grease | Oil | (Approx.) | |
| 1300 | 10 | 35 | 11 | 0.6 | 7.25 | 1.62 | 18,000 | 21,000 | 0.058 |
| 1301 | 12 | 37 | 12 | 1 | 9.45 | 2.16 | 16,000 | 18,000 | 0.066 |
| 1302 | 15 | 42 | 13 | 1 | 9.55 | 2.3 | 13,000 | 16,000 | 0.092 |
| 1303 | 17 | 47 | 14 | 1 | 12.5 | 3.2 | 12,000 | 14,000 | 0.128 |
| 1304 | 20 | 52 | 15 | 1.1 | 12.4 | 3.35 | 11,000 | 13,000 | 0.16 |
| 1304K | 20 | 52 | 15 | 1.1 | 12.4 | 3.35 | 11,000 | 13,000 | 0.158 |
| 1305 | 25 | 62 | 17 | 1.1 | 18 | 5 | 9,100 | 11,000 | 0.255 |
| 1305K | 25 | 62 | 17 | 1.1 | 18 | 5 | 9,100 | 11,000 | 0.251 |
| 1306 | 30 | 72 | 19 | 1.1 | 21.3 | 6.3 | 7,700 | 9,100 | 0.383 |
| 1306K | 30 | 72 | 19 | 1.1 | 21.3 | 6.3 | 7,700 | 9,100 | 0.377 |
| 1307 | 35 | 80 | 21 | 1.5 | 25.1 | 7.85 | 6,800 | 8,000 | 0.5 |
| 1307K | 35 | 80 | 21 | 1.5 | 25.1 | 7.85 | 6,800 | 8,000 | 0.492 |
| 1308 | 40 | 90 | 23 | 1.5 | 29.6 | 9.7 | 6,000 | 7,000 | 0.709 |
| 1308K | 40 | 90 | 23 | 1.5 | 29.6 | 9.7 | 6,000 | 7,000 | 0.698 |
| 1309 | 45 | 100 | 25 | 1.5 | 38 | 12.7 | 5,400 | 6,300 | 0.953 |
| 1309K | 45 | 100 | 25 | 1.5 | 38 | 12.7 | 5,400 | 6,300 | 0.938 |
| 1310 | 50 | 110 | 27 | 2 | 43.5 | 14.1 | 4,900 | 5,800 | 1.2 |
| 1310K | 50 | 110 | 27 | 2 | 43.5 | 14.1 | 4,900 | 5,800 | 1.18 |
| 1311 | 55 | 120 | 29 | 2 | 51.5 | 17.9 | 4,500 | 5,200 | 1.58 |
| 1311K | 55 | 120 | 29 | 2 | 51.5 | 17.9 | 4,500 | 5,200 | 1.56 |
| 1312 | 60 | 130 | 31 | 2.1 | 57 | 20.8 | 4,100 | 4,800 | 1.96 |
| 1312K | 60 | 130 | 31 | 2.1 | 57 | 20.8 | 4,100 | 4,800 | 1.93 |
| 1313 | 65 | 140 | 33 | 2.1 | 62 | 22.9 | 3,800 | 4,500 | 2.42 |
| 1313K | 65 | 140 | 33 | 2.1 | 62 | 22.9 | 3,800 | 4,500 | 2.38 |
| 1314 | 70 | 150 | 35 | 2.1 | 74.5 | 27.7 | 3,500 | 4,200 | 2.99 |
| 1315 | 75 | 160 | 37 | 2.1 | 79.5 | 30 | 3,300 | 3,900 | 3.55 |
| 1315K | 75 | 160 | 37 | 2.1 | 79.5 | 30 | 3,300 | 3,900 | 3.5 |
| 1316 | 80 | 170 | 39 | 2.1 | 88.5 | 33 | 3,100 | 3,600 | 4.17 |
| 1316K | 80 | 170 | 39 | 2.1 | 88.5 | 33 | 3,100 | 3,600 | 4.11 |
| 1317 | 85 | 180 | 41 | 3 | 97.5 | 38 | 2,900 | 3,400 | 4.96 |
| 1317K | 85 | 180 | 41 | 3 | 97.5 | 38 | 2,900 | 3,400 | 4.89 |
| 1318 | 90 | 190 | 43 | 3 | 116 | 44.5 | 2,700 | 3,200 | 5.78 |
| 1318K | 90 | 190 | 43 | 3 | 116 | 44.5 | 2,700 | 3,200 | 5.69 |
| 1319 | 95 | 200 | 45 | 3 | 132 | 51 | 2,600 | 3,000 | 6.69 |
| 1319K | 95 | 200 | 45 | 3 | 132 | 51 | 2,600 | 3,000 | 6.59 |
| 1320 | 100 | 215 | 47 | 3 | 143 | 57.5 | 2,400 | 2,900 | 8.3 |
| 1320K | 100 | 215 | 47 | 3 | 143 | 57.5 | 2,400 | 2,900 | 8.19 |
| 1321 | 105 | 225 | 49 | 3 | 156 | 64.5 | 2,300 | 2,700 | 10 |
| 1322 | 110 | 240 | 50 | 3 | 164 | 71.5 | 2,200 | 2,600 | 11.8 |
| 1322K | 110 | 240 | 50 | 3 | 164 | 71.5 | 2,200 | 2,600 | 11.7 |
| Self- aligning Ball Bearings -23 K Series | |||||||||
| Bearing Number | Boundary dimensions(mm) | Basic load ratings(kN) | Limiting speeds(rpm) | Mass(Kg) | |||||
| d | D | B | rs min | Cr | Cor | Grease | Oil | (Approx.) | |
| 2300 | 10 | 35 | 17 | 0.6 | 10.1 | 2.15 | 17,000 | 20,000 | 0.083 |
| 2301 | 12 | 37 | 17 | 1 | 11.8 | 2.71 | 15,000 | 17,000 | 0.091 |
| 2302 | 15 | 42 | 17 | 1 | 12 | 2.9 | 13,000 | 15,000 | 0.114 |
| 2303 | 17 | 47 | 19 | 1 | 14.4 | 3.55 | 11,000 | 14,000 | 0.156 |
| 2304 | 20 | 52 | 21 | 1.1 | 18.1 | 4.7 | 10,000 | 12,000 | 0.206 |
| 2304K | 20 | 52 | 21 | 1.1 | 18.1 | 4.7 | 10,000 | 12,000 | 0.201 |
| 2305 | 25 | 62 | 24 | 1.1 | 24.4 | 6.6 | 8,500 | 10,000 | 0.334 |
| 2305K | 25 | 62 | 24 | 1.1 | 24.4 | 6.6 | 8,500 | 10,000 | 0.326 |
| 2306 | 30 | 72 | 27 | 1.1 | 31.5 | 8.75 | 7,200 | 8,500 | 0.496 |
| 2306K | 30 | 72 | 27 | 1.1 | 31.5 | 8.75 | 7,200 | 8,500 | 0.485 |
| 2307 | 35 | 80 | 31 | 1.5 | 39.5 | 11.3 | 6,300 | 7,400 | 0.671 |
| 2307K | 35 | 80 | 31 | 1.5 | 39.5 | 11.3 | 6,300 | 7,400 | 0.653 |
| 2308 | 40 | 90 | 33 | 1.5 | 45 | 13.5 | 5,600 | 6,600 | 0.918 |
| 2308K | 40 | 90 | 33 | 1.5 | 45 | 13.5 | 5,600 | 6,600 | 0.895 |
| 2309 | 45 | 100 | 36 | 1.5 | 54 | 16.7 | 5,000 | 5,900 | 1.23 |
| 2309K | 45 | 100 | 36 | 1.5 | 54 | 16.7 | 5,000 | 5,900 | 1.2 |
| 2310 | 50 | 110 | 40 | 2 | 64.5 | 20.2 | 4,600 | 5,400 | 1.63 |
| 2310K | 50 | 110 | 40 | 2 | 64.5 | 20.2 | 4,600 | 5,400 | 1.59 |
| 2311 | 55 | 120 | 43 | 2 | 75.5 | 24 | 4,200 | 4,900 | 2.1 |
| 2311K | 55 | 120 | 43 | 2 | 75.5 | 24 | 4,200 | 4,900 | 2.05 |
| Bearing Number | Boundary dimensions(mm) | Basic load ratings(kN) | Limiting speeds(rpm) | Mass(Kg) | |||||
| d | D | B | rs min | Cr | Cor | Grease | Oil | (Approx.) | |
| 2312 | 60 | 130 | 46 | 2.1 | 87 | 28.2 | 3,800 | 4,500 | 2.59 |
| 2312K | 60 | 130 | 46 | 2.1 | 87 | 28.2 | 3,800 | 4,500 | 2.52 |
| 2313 | 65 | 140 | 48 | 2.1 | 96 | 32.5 | 3,600 | 4,200 | 3.2 |
| 2313K | 65 | 140 | 48 | 2.1 | 96 | 32.5 | 3,600 | 4,200 | 3.12 |
| 2314 | 70 | 150 | 51 | 2.1 | 109 | 37.5 | 3,300 | 3,900 | 3.92 |
| 2315 | 75 | 160 | 55 | 2.1 | 123 | 43 | 3,100 | 3,600 | 4.78 |
| 2315K | 75 | 160 | 55 | 2.1 | 123 | 43 | 3,100 | 3,600 | 4.66 |
| 2316 | 80 | 170 | 58 | 2.1 | 128 | 45 | 2,900 | 3,400 | 5.65 |
| 2316K | 80 | 170 | 58 | 2.1 | 128 | 45 | 2,900 | 3,400 | 5.51 |
| 2317 | 85 | 180 | 60 | 3 | 140 | 51.5 | 2,700 | 3,200 | 6.55 |
| 2317K | 85 | 180 | 60 | 3 | 140 | 51.5 | 2,700 | 3,200 | 6.39 |
| 2318 | 90 | 190 | 64 | 3 | 152 | 57.5 | 2,600 | 3,000 | 7.75 |
| 2318K | 90 | 190 | 64 | 3 | 152 | 57.5 | 2,600 | 3,000 | 7.56 |
| 2319 | 95 | 200 | 67 | 3 | 165 | 64.5 | 2,400 | 2,800 | 9.05 |
| 2319K | 95 | 200 | 67 | 3 | 165 | 64.5 | 2,400 | 2,800 | 8.83 |
| 2320 | 100 | 215 | 73 | 3 | 192 | 79 | 2,300 | 2,700 | 11.5 |
| 2320K | 100 | 215 | 73 | 3 | 192 | 79 | 2,300 | 2,700 | 11.2 |
| 2321 | 105 | 225 | 77 | 3 | 205 | 87 | 2,200 | 2,600 | 13.2 |
| 2322 | 110 | 240 | 80 | 3 | 217 | 94.5 | 2,100 | 2,400 | 15.8 |
| 2322K | 110 | 240 | 80 | 3 | 217 | 94.5 | 2,100 | 2,400 | 15.4 |
Material
Gcr15 /100C6 /52100
